High Ambient 90degree LED Highbay Lights for Foundry Factory Smelting Plant Paper Mill Lighting

• Overview
• Product Description
• Product Parameters
• Detailed Photos
• Project References
• Packaging & Shipping
• About Us
• After Sales Service

Overview

Basic Info.

Model NO.	OAK-HTHB-Smart
Power	100W, 150W, 200W, 300W, 400W, 500W
Usage	Mine, Exhibition, Warehouse, Factory, Tunnel, Foundry Factory Smelting Plant Paper Mill
Lifespan	100,000h
IP Rating	IP67
Certification	CE, CQC, C-tick, EMC, ETL, FCC, LVD, RoHS, SAA, SASO
Beam Angle	15, 25, 40, 60, 90, 120
LED Chips	CREE, Bridgelux
Power Supply	Meanwell
Lamp Wattage	100W, 150W, 200W, 300W, 400W, 500W, 800W, 1000W
Flux Efficiency	170-180lm/W
Warranty	5 Years
Working Temp	-40 ~ +90 Degree
Mouting Way	Eye Hook, U-Shape
Housing Material	Aluminum
CRI	>80ra
PF	>0.95
Ik Class	Ik08
Color	Silver, Black, and Customized Colors
Dimming Option	Dali, DMX, PWM, Zigbee
Transport Package	Carton, Wooden Boxes
Specification	1pc/box or 1pc/carton
Trademark	OAK LED
Origin	China
HS Code	9405429000
Production Capacity	50000 PCS/Year

Product Description

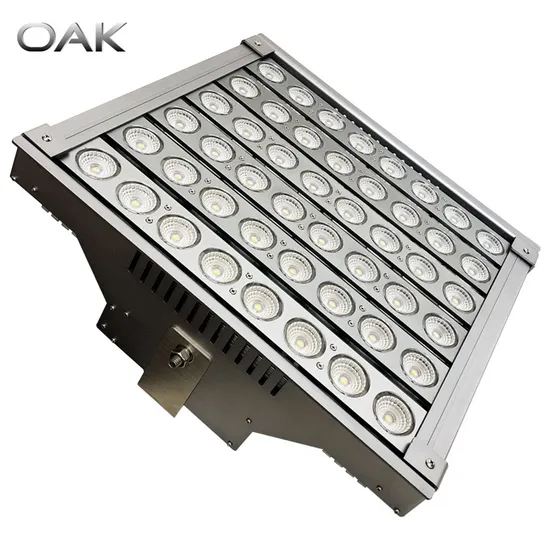

HIGH AMBIENT 90°C LED HIGHBAY LIGHTS for foundry factory smelting plant paper mill lighting

IP67 Waterproof Warehouse Industrial Foundry Factory Smelting Plant Paper Mill lighting Aircraft Hangar 100W 150W 200W 300W 400W 500W High Temperature Resistant LED highbay lights 170-180lm/w with 5 year warranty

Prodcuts Description:

First, choose it according to actual needs.

Testing of LED Highbay Lights: All our high temp led highbay lights will have 48 hours aging testing, 90°C testing after our production, surface and struction inspection before packing. We made high bay lights upturned during aging testing, which make sure lights are suitable for Extreme lighting environment. Power testing, high votage testing, Leakage testing also will be made before delivery.

Cartoon box packing for 100w, 150w, 200w, 300w, 400w, 500w highbay lights, Wooden box packing for >500w lights.

Express: DHL/UPS/FedEx from door to door. Air Freight, Sea shipping and Train shipping selectable.

* Over 10 years' experience in exterior and interior lighting, OAK LED can give the customized lighting advice and most suitable lighting solution for you.

Product Description

LED chip: CREE/Bridgelux COB original, only driving 50% capacity of COB LED Chips.

Meanwell driver: PF>0.95, using 2 times capacity of drivers for high temp working.

Beam angle: 15/25/40/60/90/120°.

Material: Pure Aluminum housing, 2 times heat sink size than normal highbay lights. Working Temp: -40° ~ 90°C.

Warranty: 5 years.

IP67 waterproof, anti-corrosion, great heat dissipation. Lifespan over 100,000 hours.

Premium precise optical lighting system, 95% high efficiency. Up to 70% energy saving comparing with MH/HPS lamps. 2-5 times brighter than conventional led lamps. Dimming with DMX/DALI/PWM system selectable. Stable and durable, easy to install lights and make maintenance. More than 100,000 hours lifetime, light still retain 50% brightness. High tech thermal management system, extend lifetime. Precise optinal PC lens, maximizing light to reach the place required. Optional beam angle, 15/25/40/60/90/120 degree, suitable for different size and height installation. Environmental protection, no UV/Hg and harmful substance. High & Low temperature resistance, suitable for -40° ~ 90°C working environment. 5 years warranty.
Eye Hook or U-Shape bracket for quick and easy installation.

Product Parameters

Item No.	Power(W)	Size(mm)	Efficiency	Beam Angle(degree)	ColorTemperature	Working Temp
OAK-HTHB-100W-Smart	100	313x300x171.5	170lm/w	15, 25, 40,60, 90, 120	1700-10,000K	-40° ~ 90°C
OAK-HTHB-150W-Smart	150	363x365x171.5
OAK-HTHB-200W-Smart	200	463x365x171.5
OAK-HTHB-300W-Smart	300	563x430x171.5
OAK-HTHB-400W-Smart	400	663x485x171.5
OAK-HTHB-500W-Smart	500	713x560x171.5

OAK High Temp Resistant LED high bay lights are mainly used in Warehouse Industrial Foundry Factory Smelting Plant Paper Mill, aircraft manufacturers, large machinery manufacturers, hardware workshops, and other places that require high hear resistance lighting up to 90°C. In different working environments have different requirements, the reflector of OAK LED high bay fixtures should be able to produce various widths of light distribution to meet different production operations and the requirements of lighting installation conditions. OAK LED has special structural design, housing and reflector to make sure our high bay lights work reliably for a long period of time in places with poor environmental conditions such as dust and humidity.

Detailed Photos

Project References

For industries like coal, petroleum, and chemical industries, it is necessary to consider whether the lighting demand can meet the requirements, but also the factors such as dust-preventio, high temperature resistance, waterproof, and even need to consider the explosion-proof requirements. If we purchase general cheap mining lamps, they are not required for energy saving and have no safety guarantee on high hear working environment and we need to consider whether the high heat highbay lights meet the requirements of national quality standards, whether they have passed the CE certification and other factors. Second, we should consider the comprehensive cost performance. The LED high bay fixtures that has passed the quality system certification, will be strictly enforced in the production and material selection due to the national standards so the price may be higher than the other lights. However it will save the cost of secondary purchase, repair and replacement of the lights. The key is to provide a reliable guarantee for our safe production. Third, focus on the appropriate power, illumination and color temperature. The power of LED high bay light should be selected according to the actual lighting area. In addition, the illumination and color temperature of the lamps are also very significant. The production line requires high resolution. For example, the textile industry needs high-resolution lamps.

Packaging & Shipping

About Us

* OAK LED consists of different knowledgeable people and achieve to provide a wide range of both great quality and high performance lighting products. * OAK LED works with various kinds of customers such as wholesalers, contractors, specifiers, designers, local authorities and end-users. * OAK LED series lighting products are widely used for sports fields, highways, airports, distribution & warehouses, car parks, road & streets, urban landscapes, transport, high mast & lighting towers, etc. * OAK LED attends multiple professional lighting exhibitions to show our high quality LED lights and start the global business cooperation with every potential clients around the whole.

After Sales Service

* OAK LED is focused on helping every customers in sales, project and technical requirements. * OAK LED ensures to offer reliable and high quality lighting products, as well as related tenical support and 100% after-sales service. * OAK LED lighting product performance is independently validated through certified laboratories and all of OAK LED lights carry out A series of certificates. * OAK LED can provide luminaires with RGB(W) color change, DALI compatible drivers/Meanwell drivers, sensors, emergency options and constant light output systems. * OAK LED offers a range of systems and controls to manage the efficiency of our LED lighting products once installed. * OAK LED provides the free lighting design service, which will share the customized lighting plan for our customers.
