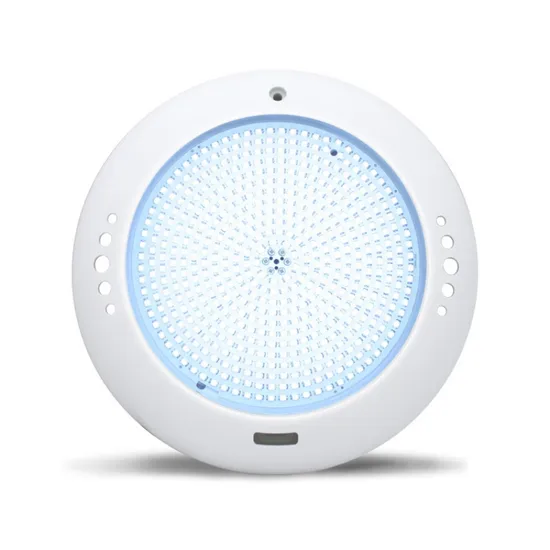

IP68 AC12V DC12V 32W Dia 240mm UV ABS Housing Epoxy Resin Filled Underwater Nicheless Wall Mounted LED Swimming Pool Light

• Overview
• Product Description
• Technical Parameter
• Our Main Products
• Company Profile
• FAQ

Overview

Basic Info.

Model NO.	JSW-W2003
With Light Source	With Light Source
Application	Swimming Pool, Fountain, Pond
Lamp Body Material	Fiber Reinforced Plastics
Lampshade Material	Fiber Reinforced Plastics
Style	Modern simplism style
Base Type	Stainless Steel or ABS
Technics	Ultrasonic Melting
Voltage	12V
Certification	CCC, CE, FCC, REACH, RoHS, UL
Suitable for	Underwater Pool Light
Type	Wall Mounted Pool Light
Color	Wht/Ww/RGB/RGBW
Cord	Customize
Transport Package	Carton Box
Specification	54*28*39mm
Trademark	JSEVOKE
Origin	China
HS Code	9405499000
Production Capacity	500000pieces/Year

Product Description

IP68 12V AC/DC 40W Dia 240mm Underwater Nicheless LED Swimming Pool Light ABS Housing Epoxy Resin Filled Wall Mounted Pool Lamp

FEATURES:

• Dia 240mm pool light for inground pool

• Epoxy resin filled pool light panel, IP68 waterproof grade

• Our pool light is easy to install

• UV ABS housing , with different colors, including blue, gray and white

• The pool light applies SMD5050/SMD2835 chip, better color mixing

• 50000 hours long life

Item: JSW-W2003
Voltage: AC/DC 12V

Frequency: 50-60Hz

Power: 18W/25W/32W/40W

Efficiency: 0.825

Shell material: PC

LED type: SMD5050/SMD2835 LED

LED Lumen : 900LM-4000LM

Light collocating mode: without lens

Beam angle: 120°

Diameter : 240mm

Cable: 2M 2*1.0mm2, customize

LED PN junction temperature : <65 ºC

Working temperature :0ºC~40ºC

Protection : IP68

Life span: 50000 hours

Size:Specification:

1.UL Certificated pool light 2.LED PAR56 pool light3.LED Surface Mount LED Pool light4.LED Fiberglass pool lights5.LED Vinyl pool lights6.LED Underwater Spot light 7.LED Fountain Light 8.LED Ground lights9.IP68 Led Strip light 10.RGB Led Controller11.IP68 par56 housing/Niche/fixture 12.Mini Pool Light

EVOKE INDUSTRIES CO.,LTD is a comprehensive company specialized in pool lighting and manipulator export and manufacturing; We have our stable long term cooperated factory partners to provide premium quality products to our clients, with over 20 years experience in exporting goods, we have establish very good reputation and one-stop service for our clients. Providing competitive price with high performance products to our clients is our mission. Our factory is located in Jiangsu Province, welcome to visit our factory for long term cooperation!

Q1:How to choose the right LED energy saving lamps? Low watage with high Lumen. This will save more electricity bill.Q2:What is the advantages of LED? Environmental friendly, Energy saving and Long lifespan.Q3:The key factor that influence LED lifespan. Temperature: It requires that junction temperature of LED chip should be ≤120ºC, so the center temperature at the LED bottom of light board should be ≤ 80 ºC.Q4:Why choose us? 1. Lower wattage with high Lumen and more energy-efficient. 2. All lamps are self-developed patent products. 3. IP68 structure waterproof without glue, and lamps disspate heat through structure. 4. According to the LED characteristic, the center temperature at the LED bottom of light board must be controlled strictly( ≤ 80 ºC). 5. High quality driver of lamps to ensure the long lifespan. 6. All products have passed CE, ROHS, FCC, IP68,IK10 and our Par56 pool light have got UL certification. 7. All products need to pass 30 steps QC inspection, the quality has the guarantee, and the faulty rate is less than three per thousand.

Product Description Technical Parameter

Volt	Power	LED	Qty	Lumens				Remarks
				WHT	DW	RGB	RGBW
AC12V DC12V	18W	SMD2835	252pcs	1800lm	/	900lm	/	RGB control way A.ON/OFF control B.Remote control(R15&R18) DW control way A.ON/OFF control B.Remote control(R18)
	25W	SMD2835	351pcs	2500lm	/	1200lm	/
	32W	SMD2835	441pcs	3200lm	/	1600lm	/
	40W	SMD2835	513pcs	4000lm	/	2000lm	/
	18W	SMD5050	90pcs	/	1900lm	900lm	/
	25W	SMD5050	120pcs	/	2600lm	1200lm	/
	32W	SMD5050	150pcs	/	3300lm	1600lm	/
	40W	SMD5050	180pcs	/	/	/	2100lm
